B. Braun bottle holder
Multifunctional bottle holder with adjustable screw clamp

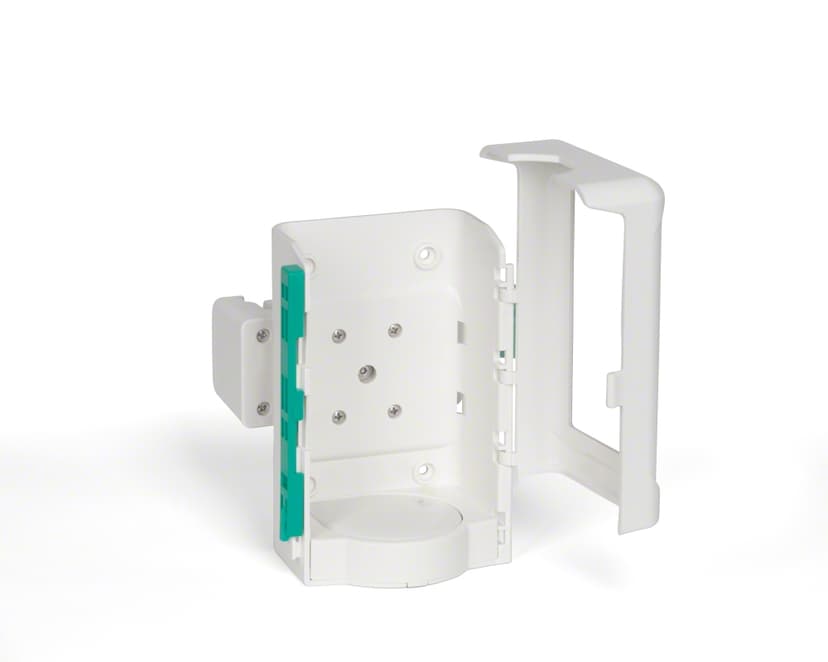

B. Braun bottle holder:
Light and adjustable bottle holder

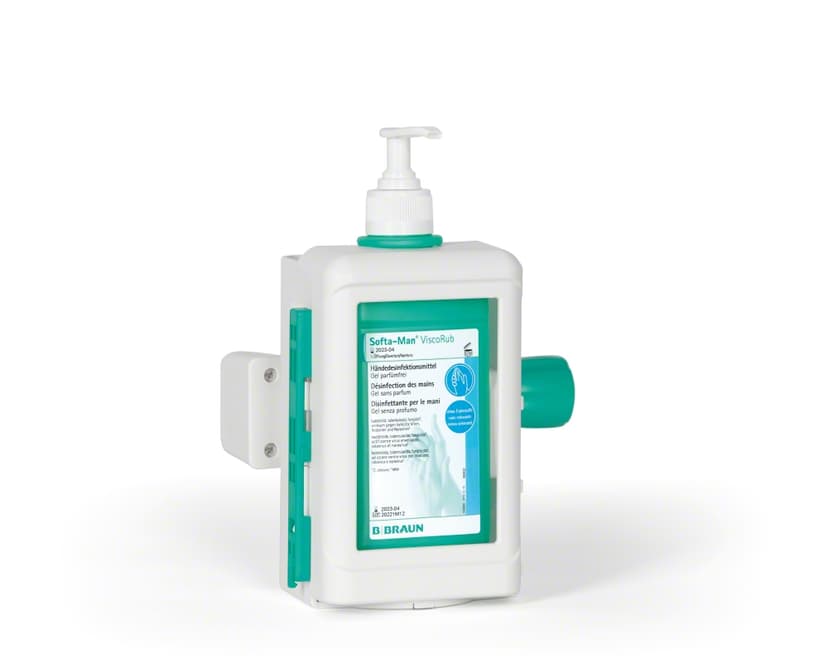

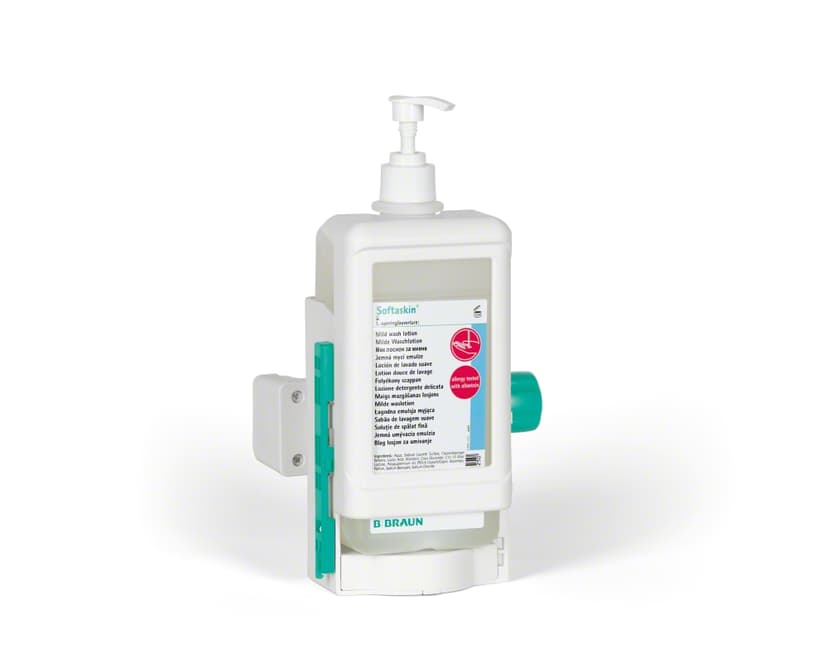

Compatible for 500ml and 1000ml bottles
Keyless lockable
Easy to install
Includes a sensor notch (consumption monitoring tool)
Holder housing, flap and bottle stand made of ABS 94-V0
Sliding lock made of ABS 94-V0, Pantone “Green C”

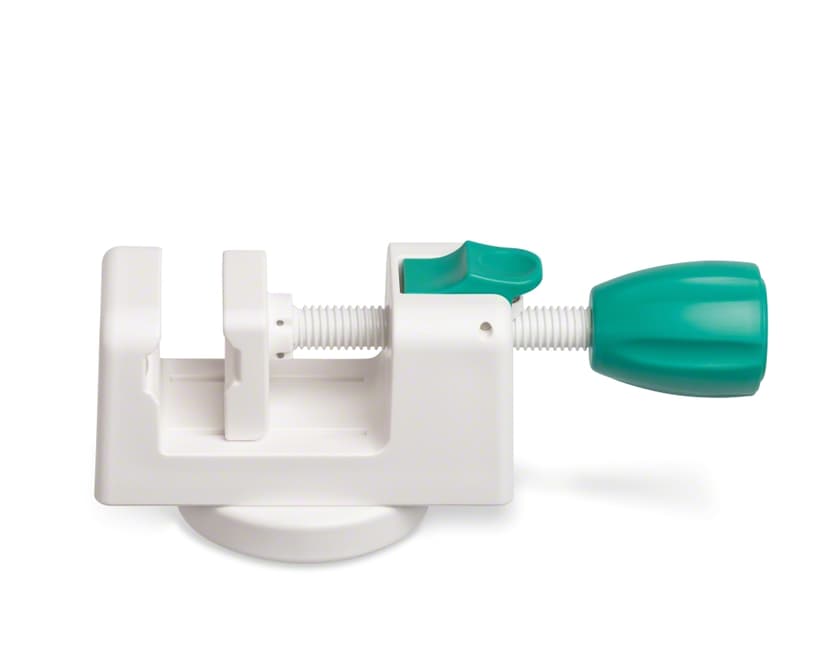

B. Braun screw clamp:
Screw clamp can easily be added

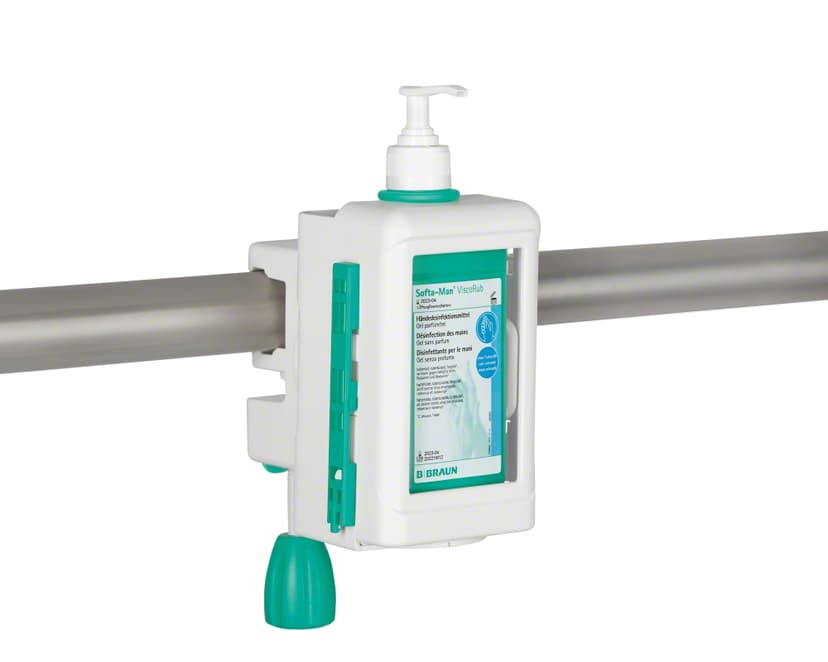

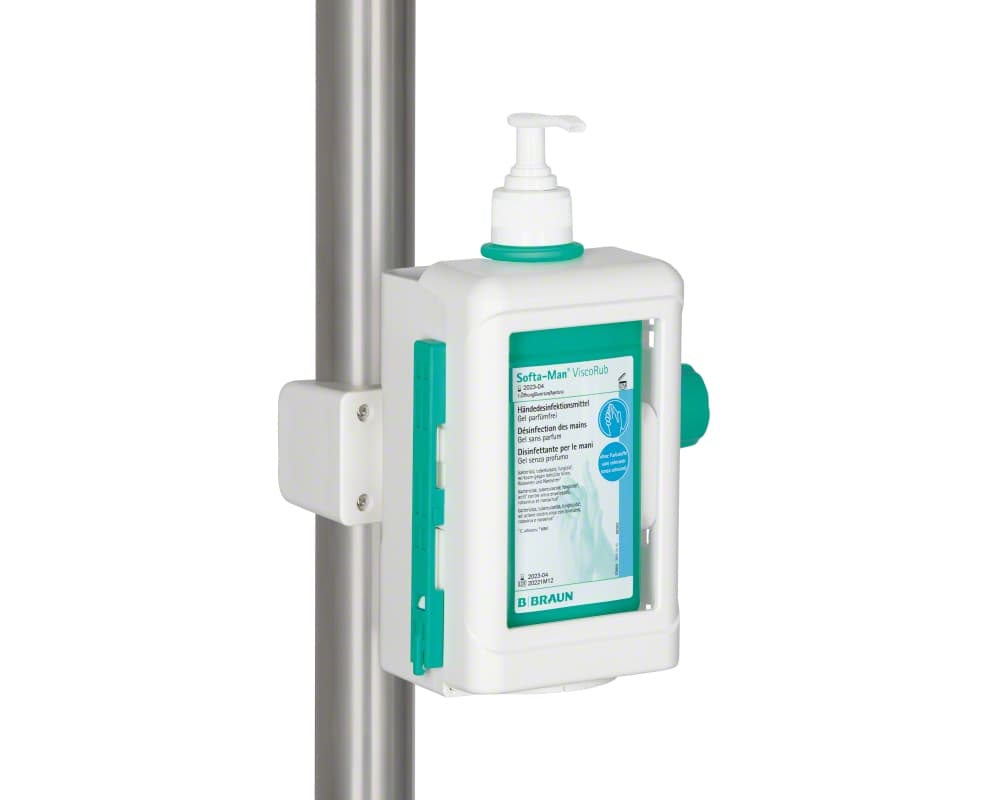

Can be turned clockwise to be clamped to horizontal as well as vertical objects
Quick release fastener simplifies attachment
Min./max. size of the pole: Min. 1cm / Max. 4cm
Clamp made of Delrin
®
100P NC010
Clamp grip made of ABS 94-V0, Pantone “Green C”
Read more
Overview & Texts
Documents
Media
Open all tabs
Description
B. Braun bottle holder:
Light and adjustable bottle holder
Compatible for 500ml and 1000ml bottles
Keyless lockable
Easy to install
Includes a sensor notch (consumption monitoring tool)
Holder housing, flap and bottle stand made of ABS 94-V0
Sliding lock made of ABS 94-V0, Pantone “Green C”
B. Braun screw clamp:
Screw clamp can easily be added
Can be turned clockwise to be clamped to horizontal as well as vertical objects
Quick release fastener simplifies attachment
Min./max. size of the pole: Min. 1cm / Max. 4cm
Clamp made of Delrin
®
100P NC010
Clamp grip made of ABS 94-V0, Pantone “Green C”
